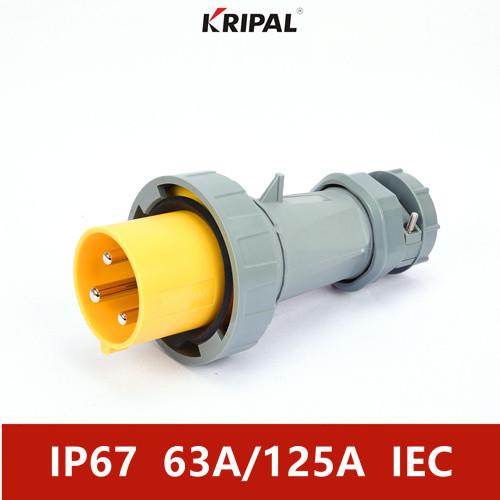

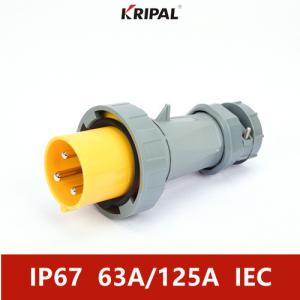

63A 125A IP67 Three Phase Waterproof European Industrial Plug
| Current | Position | Voltage | Color | Poles | Model |
| 63A | 4h | 110-130V | Yellow | 2P+E | UKS-A336-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-A336-6 |
| 9h | 380-415V | Red | 2P+E | UKS-A336-9 |
| 4h | 110-130V | Yellow | 3P+E | UKS-A346-4 |
| 9h | 220-250V | Blue | 3P+E | UKS-A346-9 |
| 6h | 380-415V | Red | 3P+E | UKS-A346-6 |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-A356-4 |
| 9h | 220-250V | Blue | 3P+N+E | UKS-A356-9 |
| 6h | 380-415V | Red | 3P+N+E | UKS-A356-6 |
| 125A | 4h | 110-130V | Yellow | 2P+E | UKS-A436-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-A436-6 |
| 9h | 380-415V | Red | 2P+E | UKS-A436-9 |
| 4h | 110-130V | Yellow | 3P+E | UKS-A446-4 |
| 9h | 220-250V | Blue | 3P+E | UKS-A446-9 |
| 6h | 380-415V | Red | 3P+E | UKS-A446-6 |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-A456-4 |
| 9h | 220-250V | Blue | 3P+N+E | UKS-A456-9 |
| 6h | 380-415V | Red | 3P+N+E | UKS-A456-6 |
Product Feature
Safety,Environmental,Economic,Multi-function,Durable,Timesaving
Standard plug,Standard socket.
Provide different series products for different environment.
Resistance to severs weather and ageing.
Good space stability and accuracy.
Effectively prevent power outages and leakage.
Specifications
| Product | Industrial Plug |
| Rated current | 16A,32A |
| No. of poles | 2P+E, 3P+E 3P+N+E |
| Voltage | 220V-250V; 380V-415V |
| Protection degree | IP44 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON, PA, PC, copper |
| Color | 110V(yellow) 220V,230V(blue)
380V,415V,440V(red) 500V(black) |
Product Applications
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
Certification
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| Plug & Socket | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| Box | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
