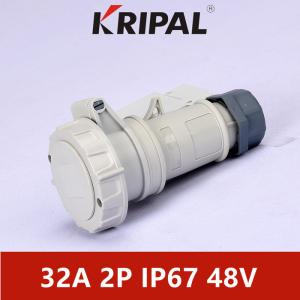

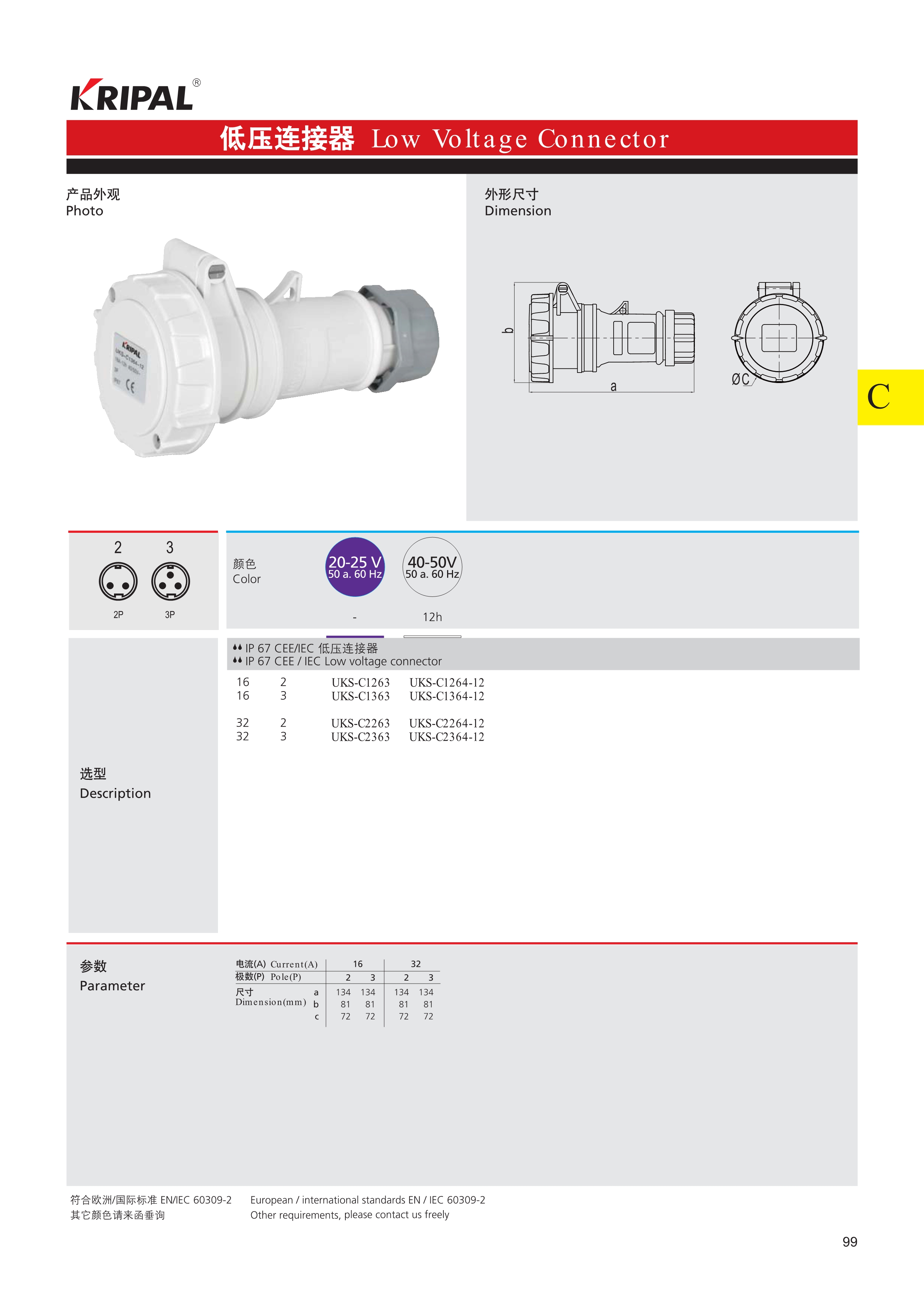

IP67 48V Industrial waterproof Low Voltage Connector IEC standard
| Current | Position | Voltage | Color | Poles | Model |
| 16A | | 20-25V | Purple | 2P | UKS-C1263 |
| | 20-25V | Purple | 2P+E | UKS-C1363 |
| 12h | 40-50V | White | 2P | UKS-C1264-12 |
| 12h | 40-50V | White | 3P+E | UKS-C1364-12 |
| 32A | | 20-25V | Purple | 2P | UKS-C2263 |
| | 20-25V | Purple | 2P+E | UKS-C2363 |
| 12h | 40-50V | White | 2P | UKS-C2264-12 |
| 12h | 40-50V | White | 3P+E | UKS-C2364-12 |
| Product | Low Voltage Connector |
| Rated current | 16A,32A |
| No. of poles | 2P,2P+E |
| Voltage | 20-25V;40-50V |
| Protection degree | IP67 |
| Power type | Single Phase |
| Conductor cross-sectional area (mm2) | 1.5-2.5(16A), 4-6(32A) |
| Material | NYLON,PA, PC, Copper |
Product Feature
Industrial plug Connector has extremely good insulation ability and it is unbreakable, wearable long-time durable, resistant against oil, gasoline and salt water, almost non-aging, extremely cold-proof and splash-proof, and it is installed easily through moveable cable clamp, used securely and reliably.
Test
1. WATERPROOF TEST: IP DEGREE,WEATHERPROOF
As is well-know , the prodcut in working condition or in storage condition , tends to be afected by various kinds of liquid more or less.
The osmosis fow impact or accumulation of liquid may have a variety of efect on the product material and performance , and even may destory its structure.Therefore,the afect from liquid can not be ignored.
The purpose of rainfall test is to confirm the reverse osmose capacity of the housing and its operation stability and reliability when or after the equipment undergoes liquid erosion.
2.SAND AND DUST TEST
We produce products avaliable for use around the world , so one of problems taken into account is the operational environment for the product , so as to evaluate the prodcut adaptability of stroage,transport or operation when it's exposed to atmosphere with dry sand or dust .
Sand and dust tast adopts simulated sand and dust environment to test the dust resistance of the product and to confirm whether the product can be used for long in various hostile natural environment .
3. CTI/PTI TEST
We design and develop products taking into account performance indexes of parts like metal conductive parts, and the CTI/PTI of plastic materials as wells.
The material selection for each development must undergo strictly controlled CTI/CPI for the purpose of better insulating property and safe operation.
Certification
Packing&Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
Service
1. Strong production capacity and strict quality control system;
2. Your inquiry and problems related to our products or prices will be replied in 24 hours;
3. Well-trained and experienced staffs to answer all your inquires;
4. After-sale tracking service for all of our clients;
5. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory;
6. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport).
Our company
Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
